Product Introduction:

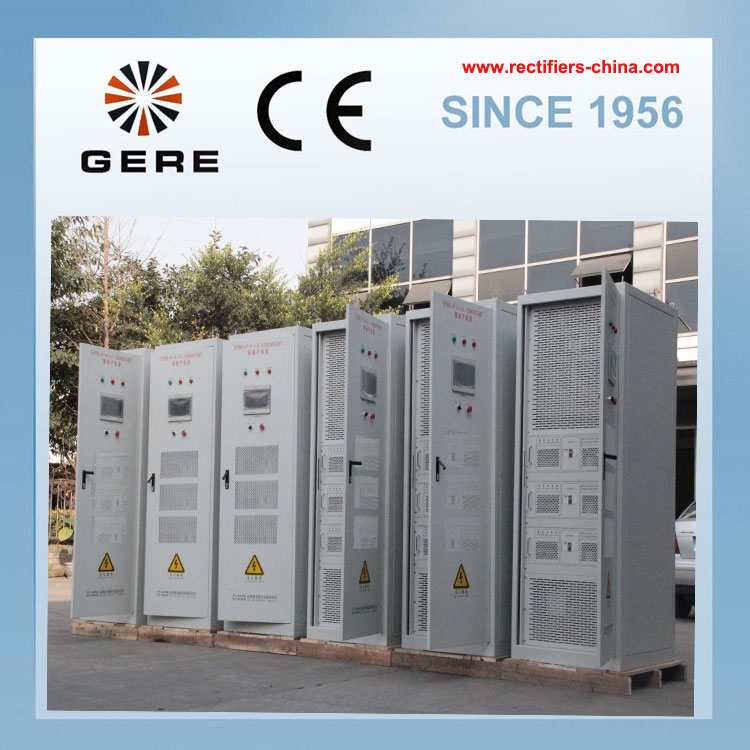

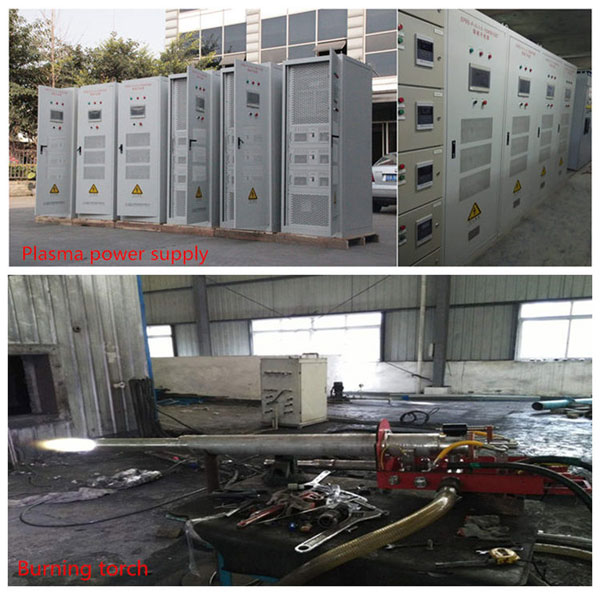

WHFB-ZB Series Plasma Power Supply Unit
Application This plasma power supply unit is extensively used as a high power plasma supply for cracking and incineration of solid waste, hazardous waste, medical garbage, nuclear waste and pesticide package waste, as well as plasma ignition for coal-fired power stations.
Power Level (kW) 50, 100, 150, 200, 300, 500
Input Power Phase 3 phase 4 wire + PE (ground)
Frequency 50HZ 60HZ
Supply AC380V / AC400V / AC440V /AC6KV / AC10KV
Output Voltage (DC) (V) 300, 400, 500, 600, 700, 800, 1000
Arc current (A) 100, 200, 300, 400, 500, 600, 800, 1000
Control accuracy ≤ ±0.5%
Stability ≤ 1%
Efficiency ≥ 94%
Automatic arc striking (second) 1 - 5
Rectifying   IGBT firing (N+1 modular redundancy)

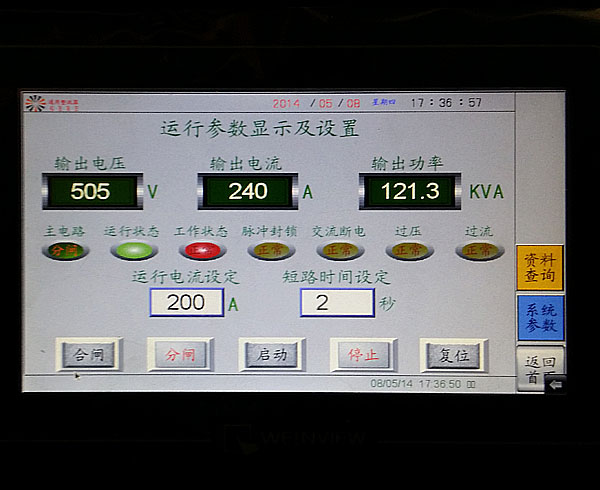

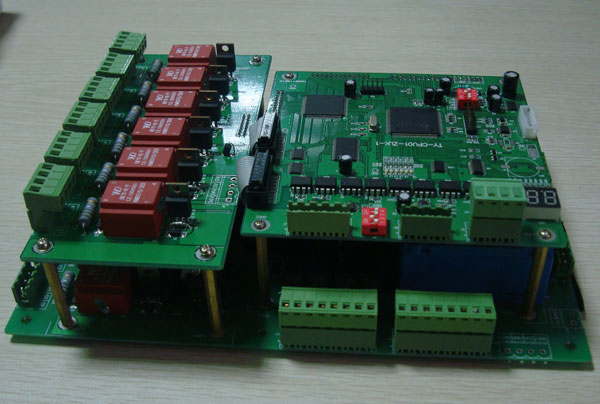

Control System Man-machine interface Colorful touch screen, multi-stage heating control is available
  Real-time record Automatically memorize and record current, voltage, time, and heating temperature.
  Real-time curve Automatically generate plasma time-current curve
Protection Function   Protect against phase loss, overheating, overvoltage, overcurrent, short circuit, over-load, etc.
Cooling Method   Air cooling / water cooling
Communications Interface   RS485
 Host Computer DCS Interface  Arc current of host computer DCS system 4-20mA
Actual output voltage to DCS  system 4-20mA corresponds to 0 - Un (rated voltage)
Actual output current to DCS  system 4-20mA corresponds to 0 - In (rated current)
Chain controlled signal Passive relay dry contact
Power failure signal uploaded to DCS system Passive relay dry contact

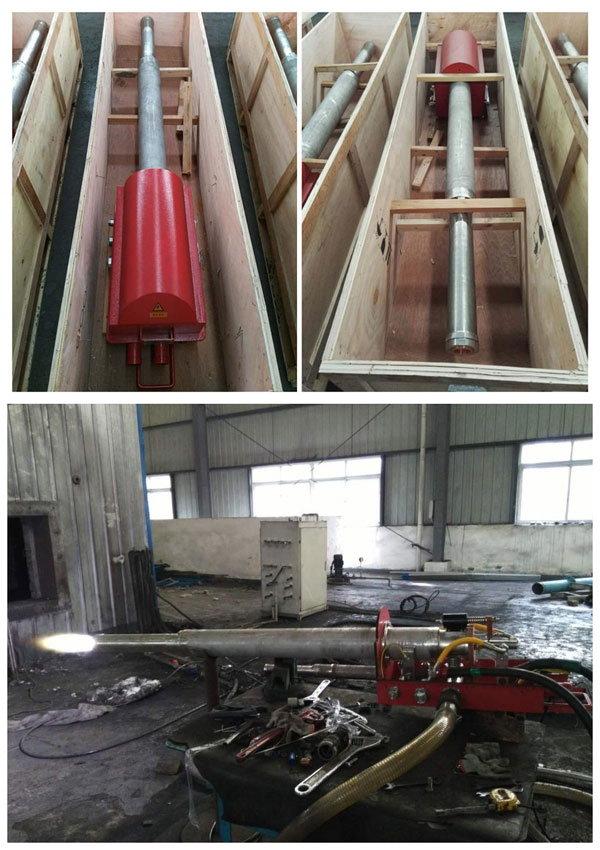

GERE-I/II Plasma Generator
Application This plasma generator is primarily used together with the plasma power supply unit for cracking and incineration of solid waste, hazardous waste, medical garbage, nuclear waste and pesticide package waste, as well as plasma ignition for coal-fired power stations.
Output Power (kW) 50, 100, 150, 200, 300, 500
Arc Striking Way Contact / high voltage arc striking
Cooling Method Water cooling
Air Pressure (MPa) 5-10
Generator Cathode Lifespan (hour) ≥ 300
Length of Arc Flow (mm) 500-800mm
Intake Pressure (KPa) 10-30 (controllable)
Inlet Flow (m3) 50 - 100
Pipe Dia. of Inlet / Outlet Joint DN40-DN50
Recirculating Cooling Water Pressure (MPa) 0.3 - 0.6
Inlet Temperature of Recirculating Cooling Water (°C) 10 - 38
Recirculating Cooling Water Flow (t/h) 5-10
Recirculating Cooling Water Quality Deionized water (no conductive impurity and suspended solids, PH value: 6-8)
Water Pressure Protection External hydraulic protection relay, which give alarms when overpressure or underpressure occurs
Length (mm) 850 - 1200
Output Flame Tube Diameter DN80 - DN160
Cathode Lifespan (hour) > 100 - 300
Anode Lifespan (hour) > 1000
Installation Flange connected
