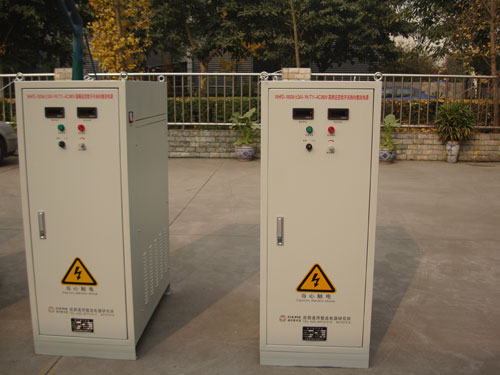

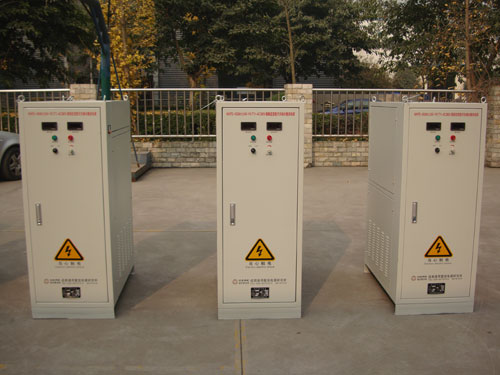

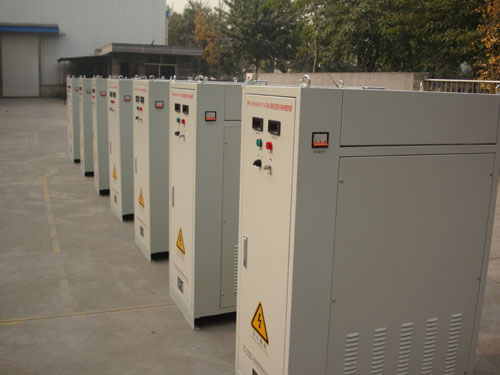

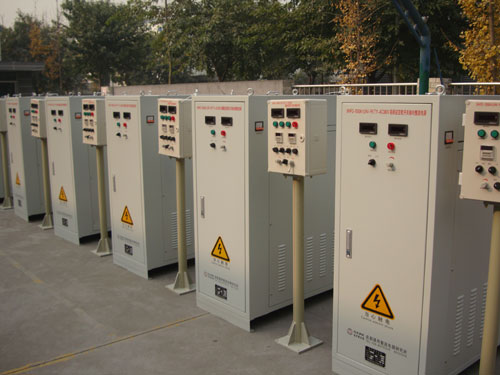

WHFD 1000A 24V High Frequency Inverter Soft Switch Reversing Rectifier Power Supply

WHFD 1000A 24V High Frequency Inverter Soft Switch Reversing Rectifier Power Supply

Main Introduction:
WHFD 1000A 24V high frequency rectifier power supply is a kind of soft switching power supply adopting IGBT soft switch rectifier technology. It is mainly used as electroplating rectifier power supply of all kinds of metal and nonmetal (like electroplating zinc, nickel, chrome and titanium, etc.). It can also be used as electrolytic rectifier power supply, general anodizing power supply, DC heating power supply, etc. (IGBT refers to Insulated Gate Bipolar Translator or Insulated Gate Bipolar Transistor.)

Specifications of 1000A 24V High Frequency Rectifier Power Supply Plating Rectifier:

Power Supply 3P AC380V, 400V, 450V, etc. Frequency: 50 Hz
Rated DC Output Voltage 6V, 12V, 15V, 18V, 24V, 36V, 48V, 60V, etc. any voltage specification
Rated DC Output Current 500A, 1000A, 1500A, 2000A, 3000A, 4000A, 5000A, 6000A, 8000A, 12KA, 15KA, 18KA, 20KA, etc. any current specification

Features of 1000A 24V Soft Switching Power Supply:

Items Technical Parameters
AC Input Voltage 3 phase, 220, 380, 415, 480V±10%, 50/60 Hz
Output Voltage DC 12V-600V; It can be adjusted continuously.
Output Current DC 1000A-60KA; It can be adjusted continuously.
Regulation Range 0 to 100%
Power Factor ≥ 0.95 (Full Load)
Output Current, Voltage Accuracy ≤ 0.5%
Efficiency ≥ 88% (Full Load)
Cooling Method Water Cooling or Forced Air Cooling
Control Mode Constant Voltage, Constant Current
Operation Mode Local Touch Screen, Remote Control Box or Communication
Communication Protocol Rs485, PROFIBUS DP, MODBUS (DP: Decentralized Peripherals)
Working Method Long Time, Full Load and Continuous Operation
Protections 1. Input Under-voltage Protection 2. Input Over-voltage Protection 3. Input Phase Loss Protection 4. Output Over-voltage Protection 5. Output Over-current Protection 6. Output Short Circuit Protection 7. Output Bus Bar with Insulation to Earth 8. Over Water Temperature Protection 9. Under Water Pressure Protection 10. Overheat Protection



Through more than 50 years’ endeavor and development, Chengdu General Rectifier Research Institute has become a specialized manufacturer and supplier of high frequency rectifier power supply in China. In addition to this kind of soft switching power supply, we also produce silicon controlled rectifier electroplating power supply and silicon controlled reversing electroplating power supply. Our products are exported to USA, Germany, Australia, Singapore, India, Brazil, Iran, Vietnam, Kazakhstan and Malaysia, etc.

If you want to know more information about our high frequency rectifier power supply, please contact us freely. We warmly welcome domestic and foreign friends to our company for visiting and cooperating.
