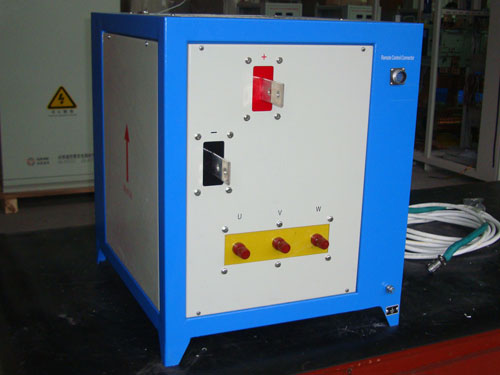

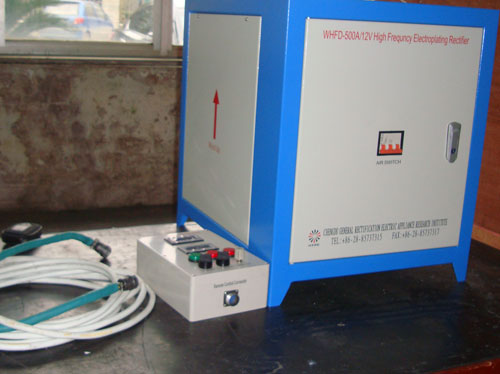

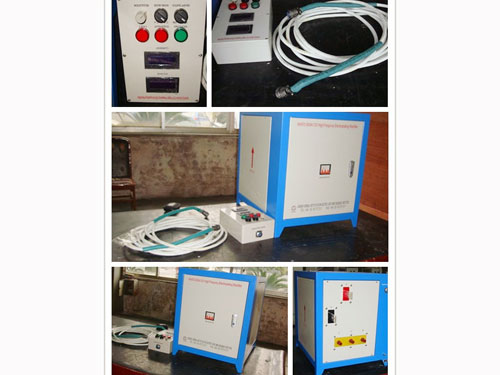

WHFD 500A 12V High Frequency Electroplating Rectifier

WHFD 500A 12V High Frequency Electroplating Rectifier

Main Introduction:

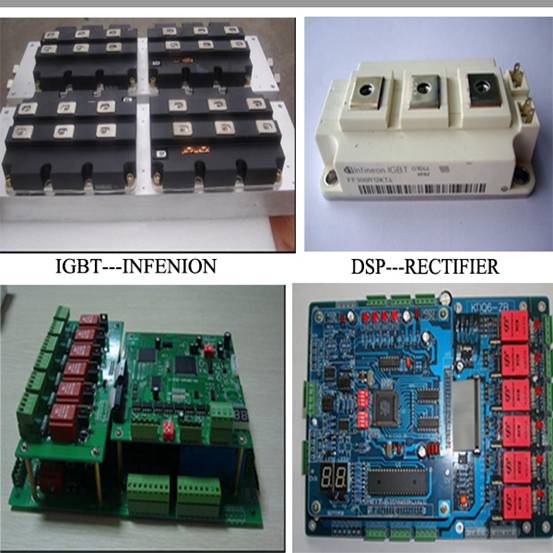

WHFD 500A 12V plating rectifier is a type of high frequency electroplating rectifier. Adopting IGBT soft switch rectifier technology, it is mainly used as electroplating rectifier power supply of all kinds of metal and nonmetal (like electroplating zinc, nickel, chrome and titanium, etc.). It can also be used as electrolytic rectifier power supply, common anodizing power supply, DC heating power supply, etc. (IGBT is referred to Insulated Gate Bipolar Translator or Insulated Gate Bipolar Transistor.)

Competitive Advantages:
1. WHFD 500A 12V plating rectifier adopts DSP computer digital control technology.
2. Adopting national patent technology, this kind of high frequency electroplating rectifier has gained independent intellectual property rights.
3. Our institute is a joint stock cooperative enterprise with over 50 years’ manufacturing experience. Our products are all ISO9001 and CE and TUV certified.

Specifications of WHFD 500A 12V plating rectifier:

Power Supply 3P AC380V, 400V, 450V, etc. Frequency: 50Hz
Rated DC Output Voltage 6V, 12V, 15V, 18V, 24V, 36V, 48V, 60V, etc. any voltage specification.
Rated DC Output Current 500A, 1000A, 1500A, 2000A, 3000A, 4000A, 5000A, 6000A, 8000A, 12KA, 15KA, 18KA, 20KA. Etc. any current specification.

Features of 500A 12V High Frequency Electroplating Rectifier:

Items Technical Parameters
AC Input Voltage 3 phase, 220, 380, 415, 480V±10%, 50/60 Hz
Output Voltage DC 12V-600V; It can be adjusted continuously.
Output Current DC 1000A-60KA; It can be adjusted continuously.
Regulation Range 0 to 100%
Power Factor ≥ 0.95 (Full Load)
Output Current, Voltage Accuracy ≤ 0.5%
Efficiency ≥88% (Full Load)
Cooling Method Water Cooling or Forced Air Cooling
Control Mode Constant Voltage, Constant Current
Operation Mode Local Touch Screen, Remote Control Box or Communication
Communication Protocol Rs485, Profibus DP, Modbus (DP: Decentralized Peripherals)
Working Method Long Time, Full Load and Continuous Operation
Protections 1. Input Under-voltage Protection 2. Input Over-voltage Protection 3. Input Phase Loss Protection 4. Output Over-voltage Protection 5. Output Over-current Protection 6. Output Short Circuit Protection 7. Output Bus Bar with Insulation to Earth 8. Over Water Temperature Protection 9. Under Water Pressure Protection 10. Overheat Protection


gg

Chengdu General Rectifier Research Institute is a leading rectifier manufacturer in China. In addition to 500A 12V plating rectifier, we also produce high frequency electrolytic rectifiers. Our products have been exported to USA, Germany, Australia, Singapore, India, Brazil, Iran, Vietnam, Kazakhstan and Malaysia, etc. If you are interested in our high frequency electroplating rectifiers, please feel free to contact us.
