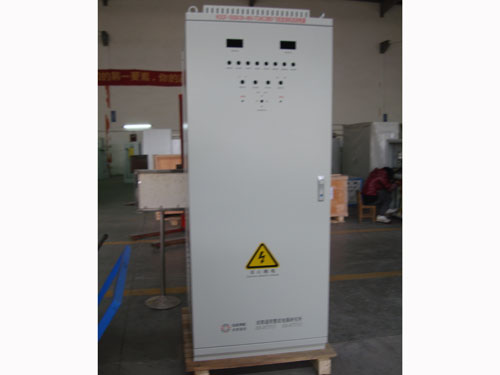

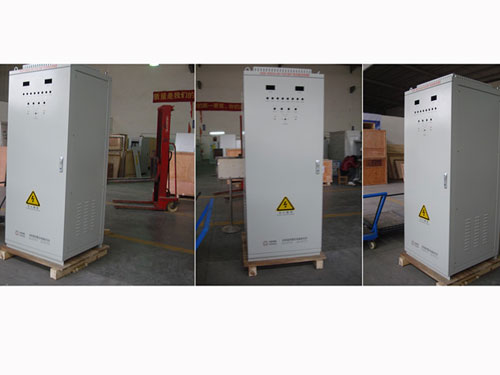

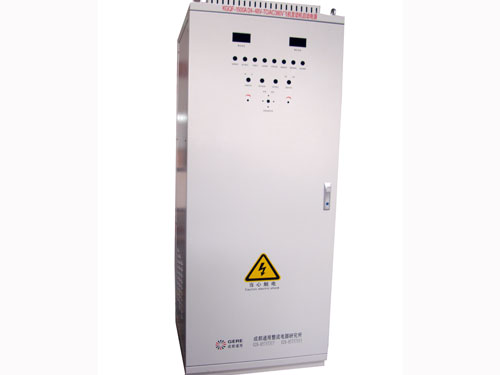

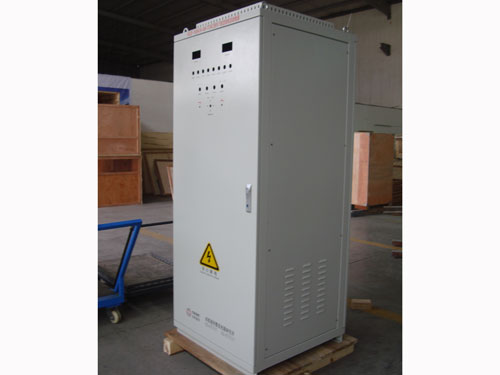

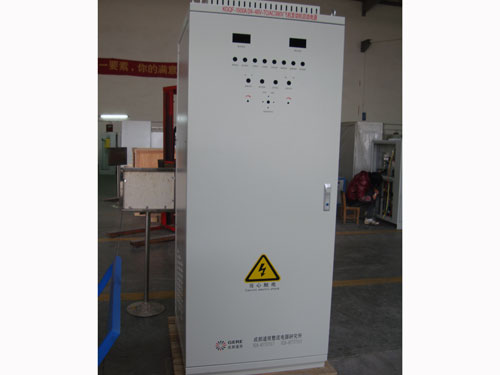

KGQF-1500A 24V (48V) Aircraft Engine Starting Power Supply

KGQF-1500A 24V (48V) Aircraft Engine Starting Power Supply

General Introduction:
KGQF-1500A 24V (48V) aircraft engine starting power supply adopts thyristor rectifier power supply. It also adopts DSP computer digital control technology, touch screen operation system and instantaneous value of double closed phase-locked loop control system. Output voltage is continuous and adjustable. This type of engine power supply can be widely used in factory inspection of military aviation aircraft engine and starting power supply of aircraft repair plant, military aircraft, tank and armored car.

Competitive Advantages:
1. This aircraft engine starting power supply has a microcomputer monitoring operation system with large touch screen.
2. Independent design and R&D ability can custom-made engine power supply according to your technical parameters.
3. The rectification transformer adopts three core five column magnetic structure to replace structure of double reverse star-shape plus balanced reactor, which can save 10% energy.
4. Remote operation control cabinet can be chosen according to customer’s actual situation, which makes site operation more convenient

Specifications of 1500A 24V (48V) Aircraft Engine Starting Power Supply:

Power Supply 3P AC 380V, 400V, 450V, etc. Frequency: 50Hz
Rated DC Output Voltage 6V, 12V, 15V, 18V, 24V, 36V, 48V, 60V, etc. any voltage specification
Rated DC Output Current 500A, 1000A, 1500A, 2000A, 3000A, 4000A, 5000A, 6000A, 8000A, 12KA, 15KA, 18KA, 20KA, etc. any current specification.

Parameters of 1500A 24V (48V) Aircraft Engine Power Supply:

Items Technical Parameters
Output Voltage DC 12V-600V; It can be adjusted continuously.
Output Current DC 1000A-60KA; It can be adjusted continuously.
Rectification Mode SCR 6/12/24 pulse rectification
Regulation Range 0 to 100%
Power Factor ≥ 0.95 (Full Load)
Output Current, Voltage Accuracy ≤ 0.5%
Trigger Pulse Asymmetry ≤ 0.1
Steady Current Accuracy ≤ ±1%
Efficiency ≥ 88% (Full Load)
Cooling Method Water Cooling or Forced Air Cooling
Control Mode Constant Voltage, Constant Current
Operation Mode Local Touch Screen, Remote Control Box or Communication
Communication Means CAN BUS, PROFIBUS, ETHERNET, RS485 and RS232 optical fiber communication
Working Method Long Time, Full Load and Continuous Operation

Environment Requirements:
1. Height above Sea Level: ≤ 2500 m
2. Indoor, Good Ventilation and Heat Dissipation
3. Ambient Temperature: -10°C ≤ T ≤ 40°C
4. RH (Relative Humidity): ≤ 85%
5. Without Inflammable, Explosive Gases and Electrical Conduction Dust on Site
6. No Strenuous Vibration and Impulsive on Site
7. Vertical Gradient: ≤ 5°
8. Scope Range of the Fluctuation of Input Voltage: ≤ ±10%

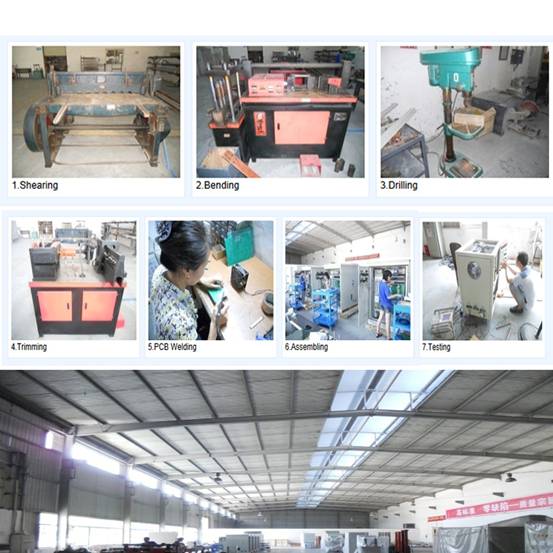

Production Process:
fff

Chengdu General Rectifier Research Institute is a professional manufacturer and supplier of engine power supply in China. In addition to aircraft engine starting power supply, we also produce tank engine and armored vehicle engine starting power sources. Our products have been exported to many countries like USA, Germany, Australia, Singapore, India, Brazil, Iran, Vietnam, Kazakhstan and Malaysia, etc. They are highly appraised by our customers both home and abroad. If you want to buy aircraft engine starting power supply, please feel free to contact us.
