SMDF(S)-MDY-PLC DC Superimposed Pulse Anodizing Power Supply

WHFD-DY-PLC High Frequency Inverter Soft Switch Anodizing Power Supply

Description:
This DC power supply adopts thyristor and IGBT switch rectifier technology, PLC, DSP microcomputer digital control technology and touch screen operation system. DC superimposed pulse anodizing power supply owns anodizing current's automatic control and DC superimposed pulse output control. Pulse duty ratio and frequency can be adjustable. With good human-computer interface and nice visibility, this DC power supply can automatically store and record real-time process curves of anodizing current, voltage, bath temperature, etc. It can also store or invoke multiple sets of process parameters with high automation, which can greatly improve the hardness of anodizing film layer. DC superimposed pulse anodizing power supply can be widely used in military services like aviation, aerospace, weapon and ship, etc. This DC power supply  can also be used to carry out common anodizing and hard anodizing on parts like aluminum, cast aluminum, aluminum alloy, magnesium alloy, titanium alloy and composite materials, etc.

Main Parameters of DC Superimposed Pulse Anodizing Power Supply:

Power Supply 3P AC380V, 400V, 450V, etc. frequency (50Hz)
Rated DC Output Voltage 24V, 36V, 60V, 80V, 100V, 110V, 120V, 150V, 200V, 250V, 300V, any voltage specification
Rated DC Output Current 50A, 100A, 200A, 300A, 500A, 600A, 800A, 1000A, 1200A, 1500A, 2000A, 3000A, 4000A, 5000A, 6000A, 8000A, 10KA, 12KA, 15KA, 18KA, 20KA, 25KA, 30KA, any current specification
Soft Start Working Time 0-200s
Control Accuracy ≤±1%
DC Output Current Ripple Coefficient ≤5%
Rectifier Efficiency ≥92%
Pulse Phase-Shifting Resolution ≤1μs
DC Superimposed PWM or PFM Frequency 0.1HZ-10HZ

Main Technical Features of This DC Power Supply:
1. DC or DC superimposed pulse output control is optional. Customers can choose different output control modes.
2. DC superimposed pulse anodizing power supply adopts human-computer operation interface with PLC colorful touch screen.

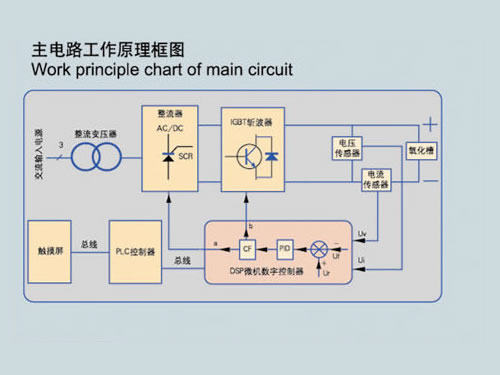

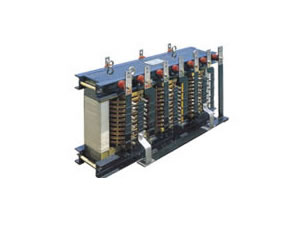

3. It adopts SCR rectification or IGBT inverter soft switch rectifier.

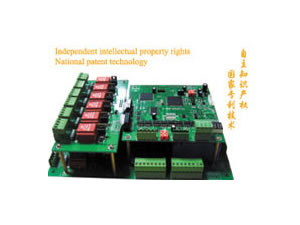

4. Master controller makes use of DSP computer digital trigger control and PWM control.

5. We can provide CAN BUS, PROFIBUS, ETHERNET, RS485 and RS232 fiber communication to realize remote control or monitor according to customers' requirements
6. This DC power supply has several protection functions, such as openphase, overvoltage, under voltage, quick fuse or fuse alarm protections of AC power supply, output over current and current limiting protections. DC superimposed pulse anodizing power supply also possesses functions of output short circuit and instantaneous overload protections, IGBT RFSM, quick rectifier diode components, switch rectifier transformer and bus copper bar overheat, fan overheating or excess water pressure and low block trigger pulse protections.   .
7. This DC power supply can be connected with computer through RS485 communication interface, or can be stored by U disk then re-stored to computer. DC superimposed pulse anodizing power supply is convenient to save customers' files and to analyze the process quality of anodizing parts.
8. The main process technical index of DC superimposed pulse anodizing power source is better than Italy ELCA Company's anodizing power supply products.

Chengdu General Rectifier Research Institute is a professional manufacturer and supplier of DC superimposed pulse anodizing power supply in China. In addition to this DC power supply, we also produce high frequency inverter soft switch, thyristor rectifier, asymmetric AC pulse and titanium alloy pulse anodizing power sources. Our products have been exported to USA, Germany, Australia, Singapore, India, Brazil, Iran, Vietnam, Kazakhstan and Malaysia, etc.
