Electroplating Power Supply

Electroplating power supply is a device that can convert power frequency AC into DC with different voltage, frequency and waveform. Plating power supplies mainly adopt rectification technology in silicon controlled rectifier, but use both rectification and inverter technology in the high frequency switching power supply.Electroplating power supply is composed of main circuit and control circuit. Plating power supplies are applicable to non-ferrous metals, such as electrogalvanizing, nickel plating, tin plating, chromium, copper and cadmium plating, also to precision electroplating of gold, silver and other precious metals.

Features of Electroplating Power Supply:

1. Plating power supplies own small size and light weight. They are easy to facilitate your planning, expansion, moving, maintenance and installation.
2. The electroplating power supply has a good energy-saving effect. Switching power supply adopts a high-frequency transformer that greatly improves the conversion efficiency. Compared to SCR power supply, it can improve efficiency more than 10% and more than 30% when the load rate is below 70%.
3. Plating power supplies own high output stability. This electroplating power supply owns fast system response speed (microseconds), high adaptation to the electricity network and load change, high output accuracy and efficiency switching power supply. It guarantees high control accuracy, and improve the quality of products.
4. The output waveform of plating power supplies is easy to modulate. Due to the high frequency and relatively lower processing costs of the output waveform adjustment, this electroplating power supply is more convenient to change the output waveform according to the users' process requirements. It can improve work efficiency and improve the quality of processed products greatly.

Chengdu General Rectifier Research Institute is a professional manufacturer and supplier of plating power supplies in China. We mainly produce SCR power supply and SCR reverse electroplating power supply, high frequency inverter soft switching power supply and pulse plating power supply. Our products have been exported to USA, Germany, Australia, Singapore, India, Brazil, Iran, Vietnam, Kazakhstan and Malaysia, etc.

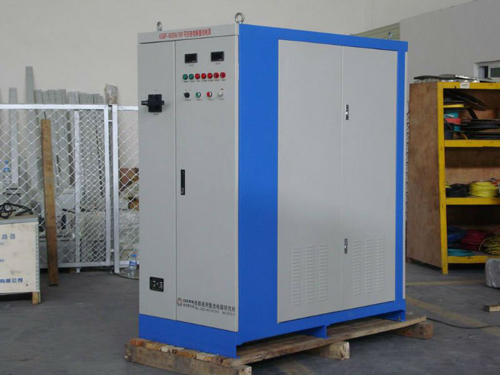

  • Inverter Soft Switch Electroplating Power Supply
  • This high frequency switching power supply is designed using a soft-switched resonant DC link inverter (RDCLI). High frequency inverter soft switch plating power supply adopts a current initialization scheme ...

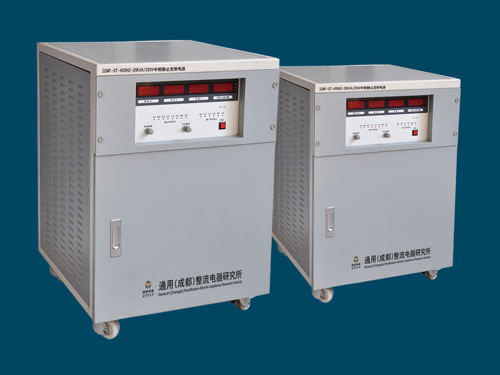

  • Pulse Electroplating Power Supply
  • This pulse power supply adopts IGBT switch rectifier, PWM chopper technology, DSP microcomputer digital control technology and touch ...
